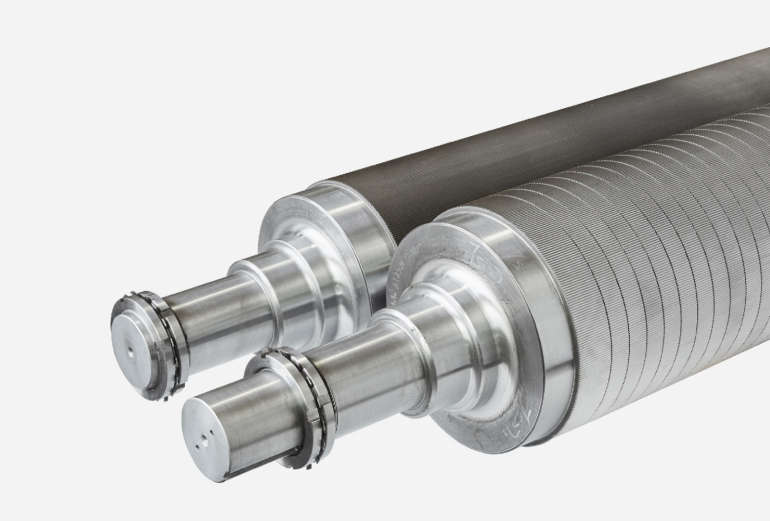

Tungsten carbide corrugating rolls are widely recognized for their exceptional wear resistance. But their value goes far beyond extending roll life. By combining high-hardness coating technology, precise flute profiles, and excellent surface performance, tungsten carbide corrugating rolls can improve flute stability, board quality, material efficiency, and overall production performance.
 |
 |
|---|
1. Longer Service Life and Lower Replacement Costs
The high hardness of tungsten carbide coating—typically above HV1200—provides outstanding resistance to wear compared with traditional chrome-plated corrugating rolls. Depending on operating conditions, service life can reach 20 million linear meters or more.
Less flute wear means fewer roll replacements and reduced downtime, helping corrugating plants lower maintenance and replacement costs while keeping production running more consistently.
2. More Stable Flute Profiles and Better Board Quality

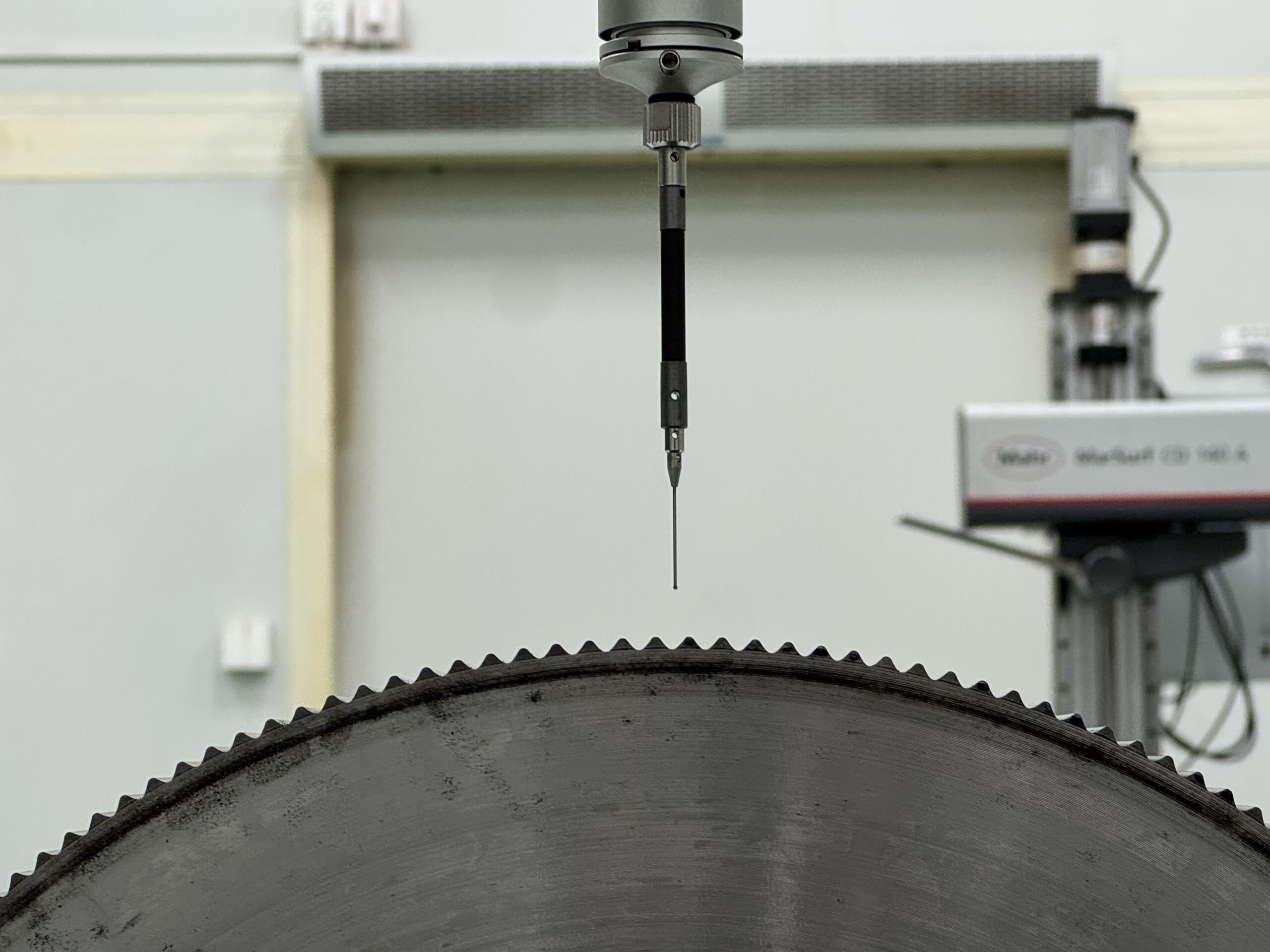

Wear resistance directly affects flute consistency. With tungsten carbide coating, flute height wear can be controlled to approximately 0.06–0.08 mm, helping the optimized flute profile remain stable over extended production runs.
Stable flute geometry supports consistent board thickness, better printing flatness, and reliable corrugated board strength. Optimized profiles such as UV and UVV flutes can further improve board performance while reducing paper and starch consumption.
3. Improved Material and Production Efficiency
A stable flute profile can help reduce unnecessary paper consumption by maintaining the intended take-up ratio. Minimal flute tip wear can also reduce excessive glue consumption.
Meanwhile, a smooth tungsten carbide surface, with surface roughness potentially reaching Ra 0.4–0.6 μm, supports high-speed corrugator operation and helps minimize friction and paper damage.
The result is not simply a longer-lasting roll, but a more efficient corrugating process.
4. Precision, Durability, and Reusability

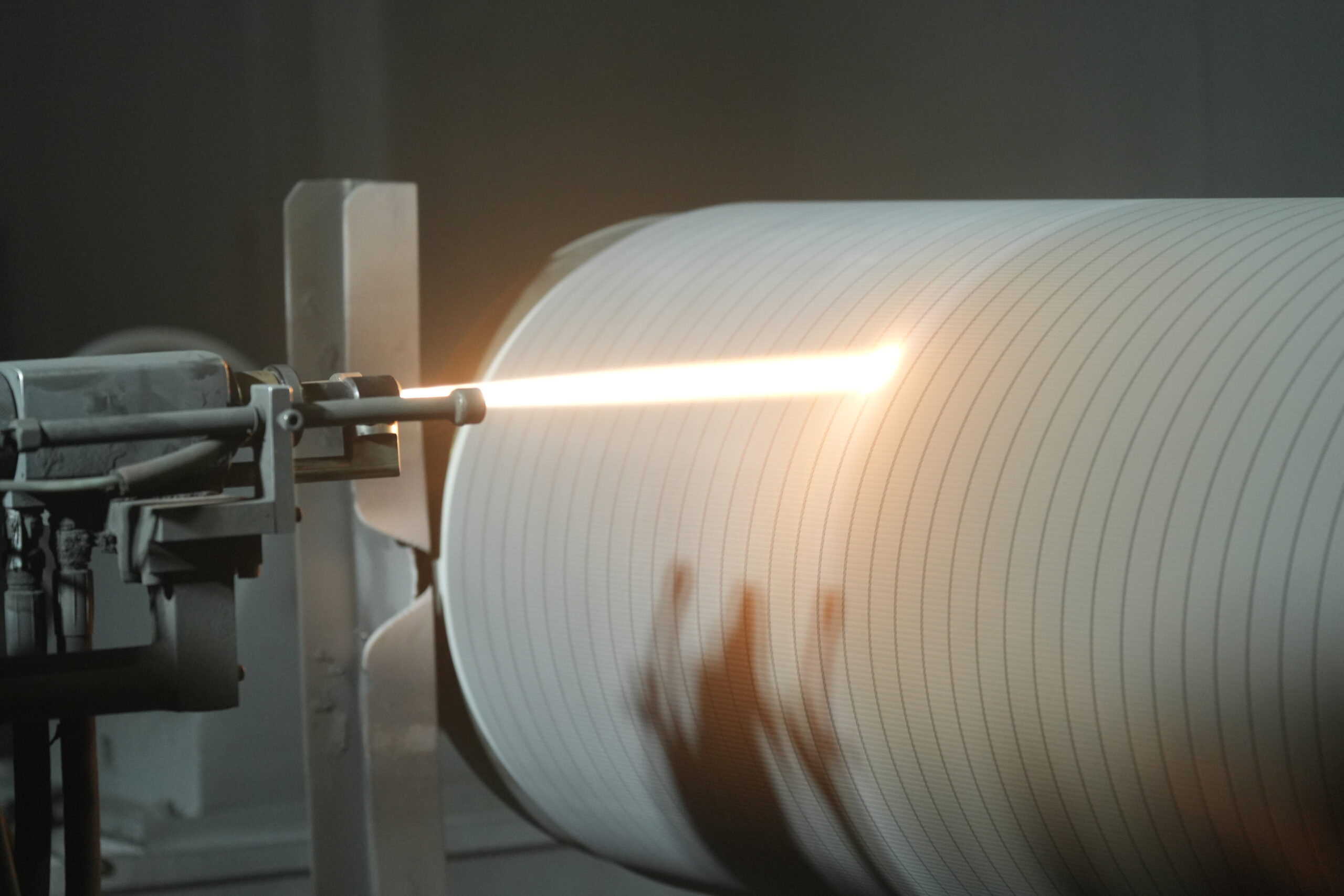

Tungsten carbide coating is designed to bond firmly with the roll substrate while maintaining controlled coating thickness and precise flute geometry. Its corrosion resistance also makes it suitable for demanding production environments with moisture and paper dust.
With appropriate refurbishment processes, the roll body can be reused after removing the existing coating and applying a new one, extending the value of the original roll.
More Than Wear Resistance
The real advantage of tungsten carbide corrugating rolls lies in the combination of longer service life, stable flute geometry, lower material consumption, and reliable high-speed performance.
For modern corrugating plants, choosing the right roll is not only about how long it lasts. It is about how consistently it performs throughout its service life.
RMM Corrugating Rolls — Precision in Every Flute.
