Corrugated board is one of the most widely used packaging materials in the world. From e-commerce shipping cartons to industrial packaging, its excellent strength-to-weight ratio, cushioning performance, and cost efficiency make it the preferred choice across numerous industries.
However, not all corrugated boards perform the same. Their strength, durability, printability, and overall performance are primarily determined by three key factors:
- Flute Type
- Flute Profile
- Paper Weight (GSM)
Understanding these fundamentals helps manufacturers choose the most suitable board structure for different packaging applications while improving production efficiency and product quality.
What Is Corrugated Board?
Corrugated board is a multi-layer packaging material made by bonding one or more layers of corrugated medium between flat linerboards. This engineered structure provides excellent strength while remaining lightweight.

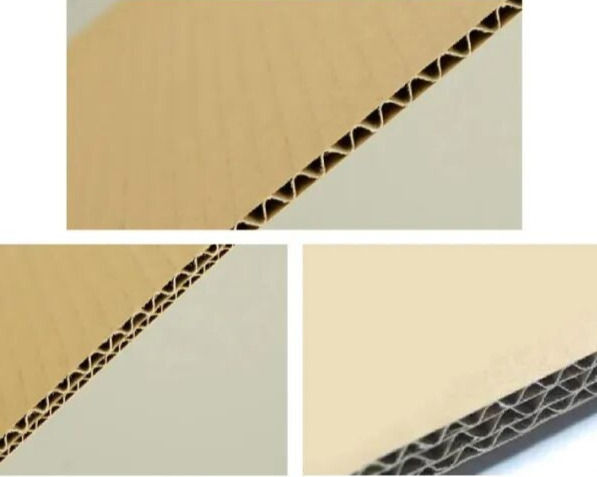

According to its construction, corrugated board can be classified into three common types:
Single Wall
Consists of one corrugated medium bonded between two linerboards. It is the most widely used structure for standard packaging applications.
Double Wall
Constructed with two corrugated mediums and three linerboards, offering higher compression strength and better protection for heavier products.
Triple Wall
Built with three corrugated mediums and four linerboards, providing maximum strength for heavy-duty industrial and export packaging.
The combination of flute type and paper grade directly determines the board's thickness, stacking strength, cushioning performance, and printing quality.
Common Corrugated Flute Types
Different flute profiles provide different mechanical properties and packaging performance. Selecting the right flute depends on the product, transportation conditions, and packaging requirements.
| Flute Type | Approx. Thickness | Main Features | Typical Applications |
|---|---|---|---|
| A Flute | ≈5.0 mm | Excellent cushioning and stacking strength | Heavy-duty shipping cartons |
| B Flute | ≈3.0 mm | High puncture resistance | Food and beverage packaging |
| C Flute | ≈4.0 mm | Balanced strength and cushioning | General-purpose cartons |
| E Flute | ≈1.5–2.0 mm | Smooth surface with excellent printability | Retail packaging |
| F Flute | ≈0.8 mm | Thin profile for premium printing | Luxury packaging |
| G Flute | ≈0.5–0.6 mm | Ultra-thin and lightweight | Small consumer goods |
| BC Flute | ≈7.0 mm | Excellent compression strength | Industrial packaging |
| AB Flute | ≈8.0 mm | Superior cushioning performance | Heavy export cartons |
| AE Flute | ≈6.5–7.0 mm | Combines cushioning and printability | Premium packaging |
Each flute type offers unique advantages.
- A Flute provides excellent cushioning and shock absorption.
- B Flute delivers superior puncture resistance.
- C Flute offers a balanced combination of strength and cushioning.
- E, F, and G Flutes are ideal for high-quality printing and retail packaging.
-
Double-wall flute combinations significantly improve stacking strength and load-bearing capacity.

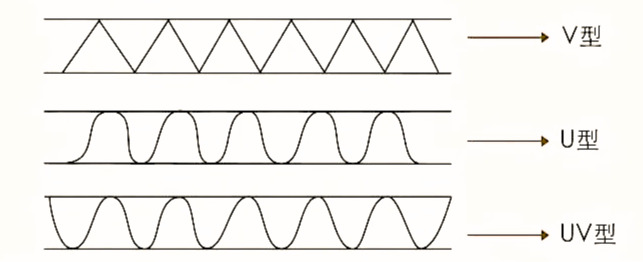

U Flute vs. V Flute
Besides flute size, flute geometry also plays an important role in corrugated board performance.
U Flute
The U-shaped flute features a larger radius at the flute tip, creating a wider bonding area between the medium and linerboard.
Advantages
- Better cushioning performance
- Larger adhesive bonding area
- Improved durability
- Better resistance to crushing
- Suitable for high-speed corrugators
V Flute
The V-shaped flute features steeper sidewalls and a narrower flute tip.
Advantages
- Higher board rigidity
- Better edge crush strength
- Improved stacking performance
- More precise folding characteristics
- Better dimensional stability
Today, many modern corrugating rolls adopt an optimized flute geometry that combines the advantages of both U and V flute profiles, delivering excellent bonding performance, board strength, and production efficiency.
Understanding Paper Weight (GSM)
Paper weight is measured in grams per square meter (g/m²), commonly referred to as GSM. It is one of the most important factors affecting the strength and performance of corrugated board.
Typical Paper Grades
| Paper Type | Typical GSM |
|---|---|
| Kraft Liner | 200–250 gsm |
| Test Liner | 140–190 gsm |
| White Top Liner | 170–250 gsm |
| Corrugating Medium | 105–180 gsm |
Generally speaking:
- Higher GSM provides greater compression strength, puncture resistance, and stacking performance.
- Lower GSM reduces packaging weight, lowers material costs, and supports sustainability when properly engineered.
Selecting the appropriate paper grade depends on product weight, transportation conditions, storage environment, and packaging requirements.
How Corrugating Rolls Influence Board Quality
Although paper quality is important, the corrugating roll is equally critical in determining the final quality of corrugated board.
High-precision corrugating rolls help manufacturers achieve:
- Consistent flute formation
- Accurate flute height and pitch
- Stable adhesive bonding
- Lower glue consumption
- Improved board flatness
- Higher machine operating speeds
- Longer service life
- Reduced production waste
Accurate flute geometry also contributes to stronger corrugated board, improved production efficiency, and more consistent packaging quality.
Conclusion
The quality and performance of corrugated board are determined by the combination of flute type, flute profile, paper weight, and manufacturing precision.
Understanding these key factors enables manufacturers to optimize packaging strength, reduce material costs, improve production efficiency, and achieve more reliable packaging performance.
Whether selecting A, B, C, E, F, or G Flute, choosing between U and V flute profiles, or determining the most suitable paper GSM, every decision contributes to the final quality of the corrugated board.
As the packaging industry continues to pursue higher productivity, lighter packaging, and greater sustainability, precision-engineered corrugating rolls will remain one of the key technologies for producing high-quality corrugated board.
